Alibaba China Top Quality steel plate rolling machine for best price

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets plate rolling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Besco
Model Number:
W12-12*4000
Max bending thickness:
12
Max bending width:
4000
Bending capacity:
245
Pre-bending capacity:
10
Top roller diameter:
410
Bottom roller diameter:
360
Side roller diameter:
280
Bending speed:
4
Main hydraulic motor:
30
Working roll drive mode:
hydraulic
After-sales Service Provided:
Engineers available to service machinery overseas
Condition:
New
Power:
Hydraulic
Material / Metal Processed:
Carbon Steel
Certification:
CE
Machine Type:
Beading Machine
Raw Material:
Sheet / Plate Rolling
Automation:
Automatic
Extra Services:
BENDING
Supply Ability
Supply Ability:
20 Set/Sets per Month plate rolling machine
Packaging & Delivery
Packaging Details
sea worthy wooden box
Port
shanghai
Lead Time :
Shipped in 30 days after payment
Product Description



Summarize

This machine belongs to four roller plate rolling machine. It’s for pre-bending and rolling of barrels used

on pressure vessels and other industry. It has the ability of rough straightening and round rolling as

well.



The top roller is used as main drive. It’s hydraulic driven. It drives the bottom roller and side rollers

through the friction between the plate and the roller, and thus to provide rolling torque. The lifting

of the bottom roller, the two side rollers, tilting frame, and the backup roller is through hydraulic.



The pre-bending of plate end is achieve by lifting the bottom roller and clamping the plate end,

 meanwhile, inclined lifting the side rollers. The advantage of end plate bending (pre-bending)

 and rolling can be conducted on the same machine.



Structure and main parts

This equipment composed of work frame, upper roll device, main drive device, down roll device, side roll

device, overturn device, hydraulic system (parts), electricity system (parts), and lubricate device.



4 Roller Bending Machine Parameters

Model

Max

bending

thickness

Max

bending

width

Bending

capacity

Pre-

bending

capacity

Top

roller

diameter

Bottom

roller

diameter

Side

roller

diameter

Bending

speed

Main

hydraulic

motor

Working

roll drive

mode

W12-12*4000

12

4000

245

10

410

360

280

4

30

hydraulic

W12-16*2000

16

2000

245

12

300

300

220

5.5

18.5

hydraulic

W12-16*2500

 16

2500

245

12

330

330

 260

6.5

22



hydraulic

W12-20*2000

 20

2000

245

16

330

330

260

6.5

22



hydraulic

W12-20*2500

 20

2500

245

16

360

360

280

6.5

30



hydraulic

W12-20*3000

 20

3000

245

16

410

400

320

4.5

37



hydraulic

W12-25*2000

25

2000

245

22

360

360

280

6.5

30



hydraulic

W12-25*2500

 25

2000

245

22

410

400

320

37



hydraulic

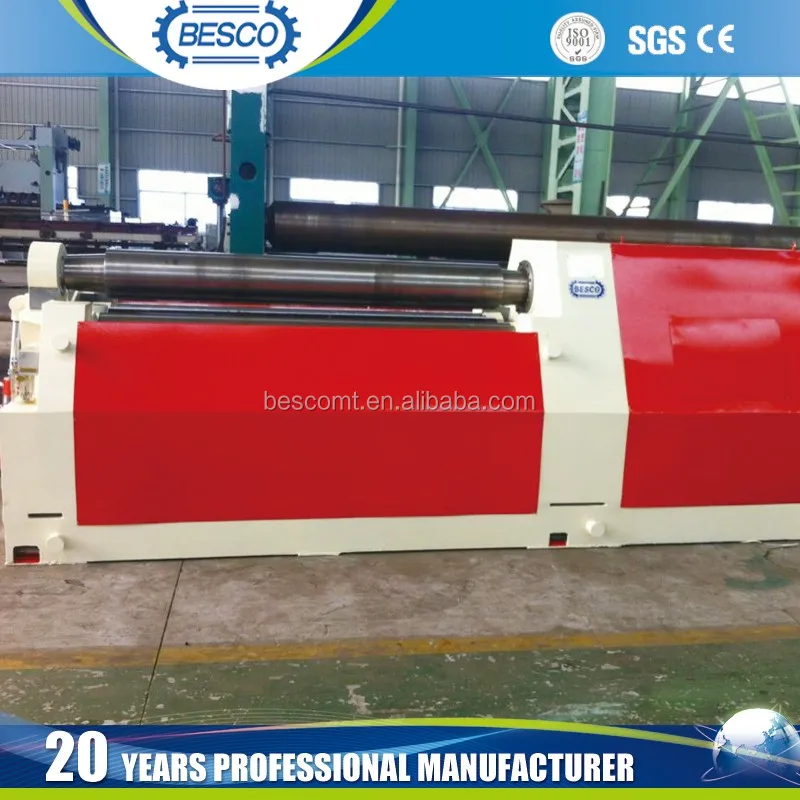

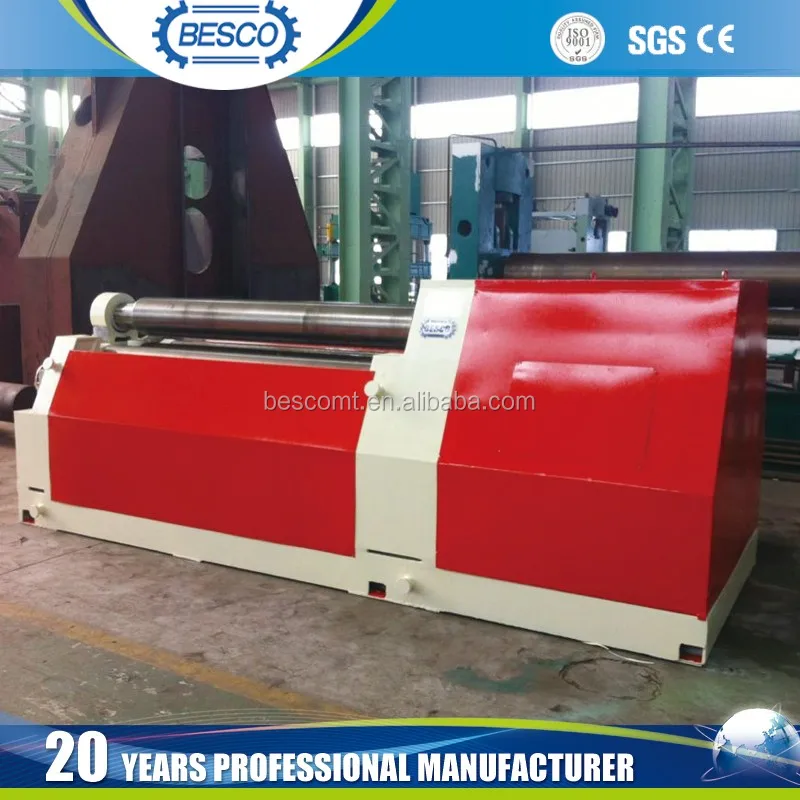

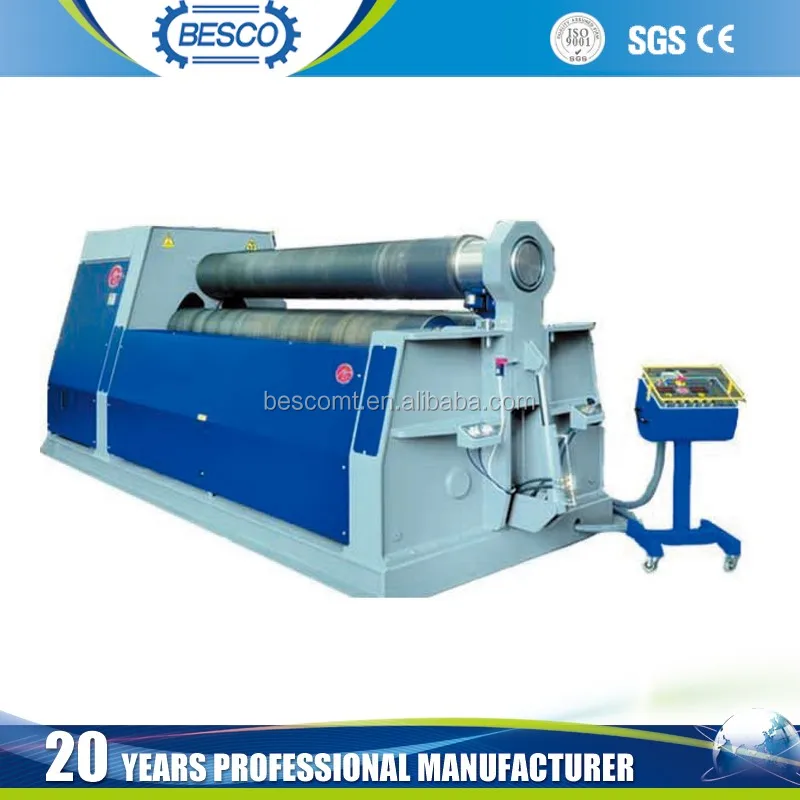

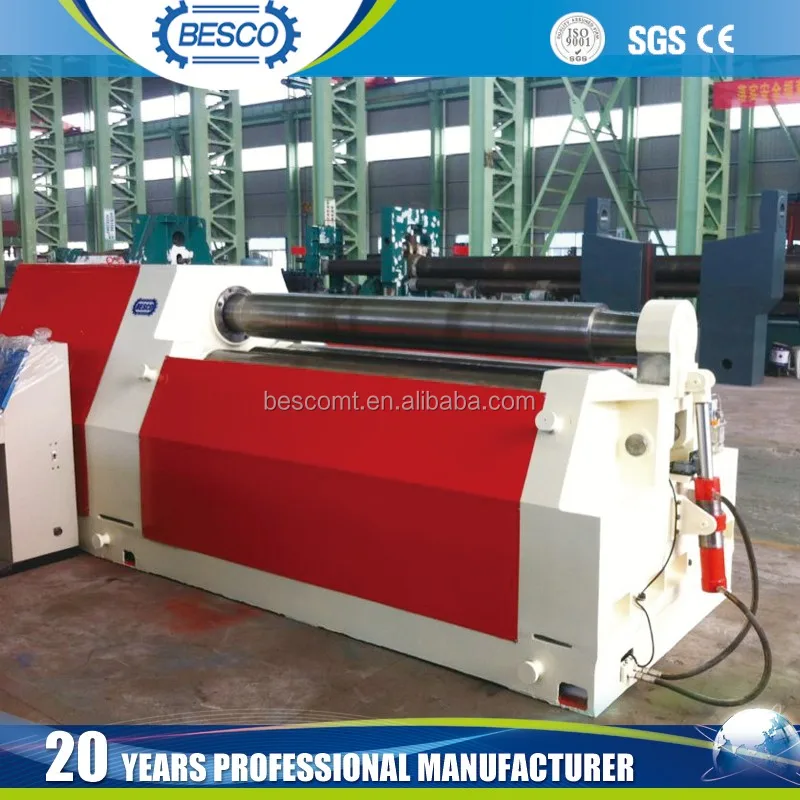

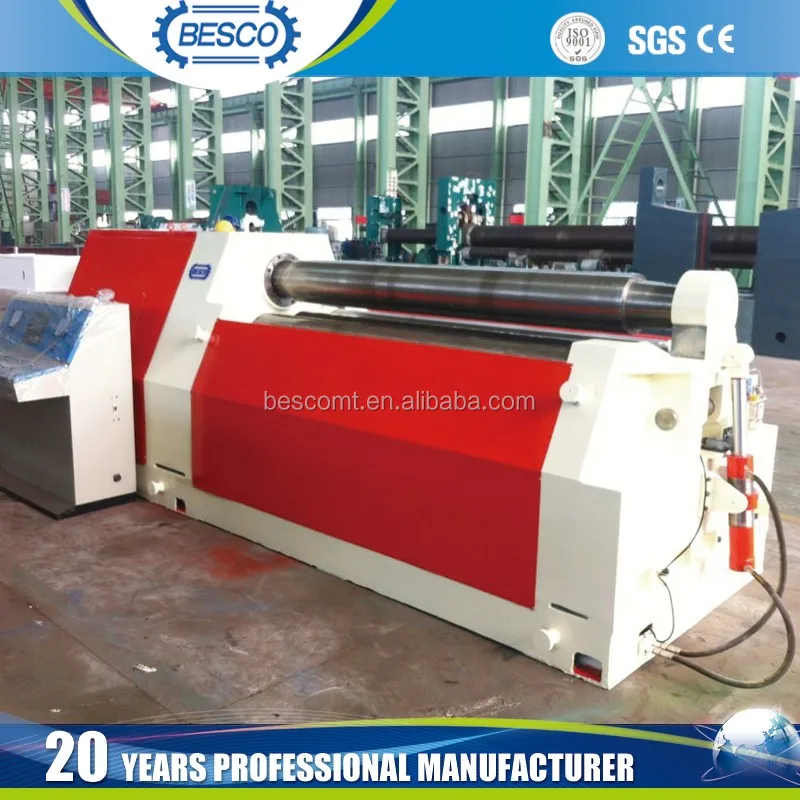

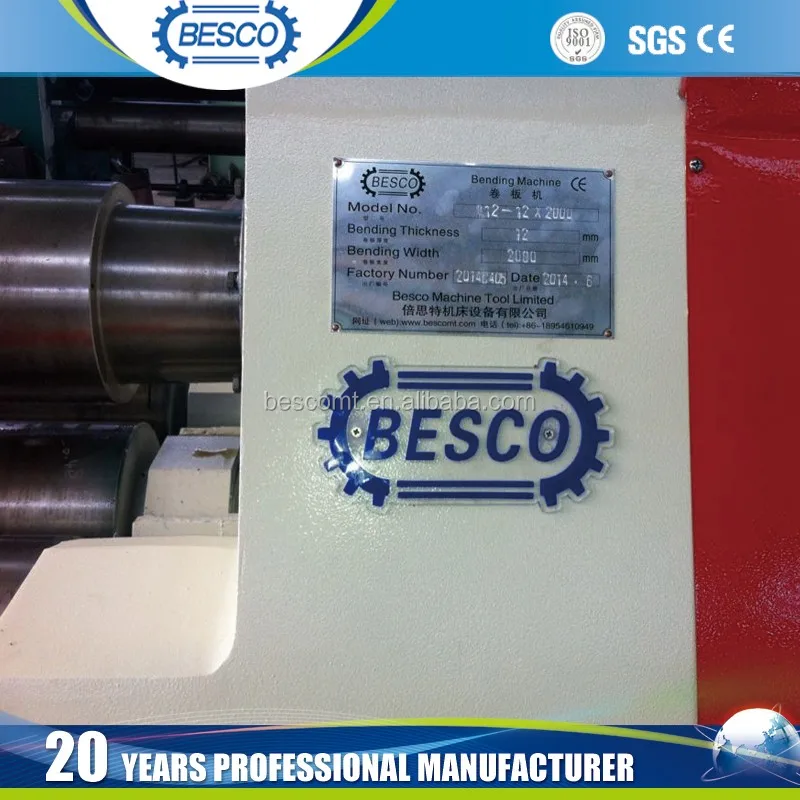

Product Pictures





Packaging & Shipping



Company Information



Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines, cut to length and slitting line, etc.

We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.

We will offer you our best quality machine and the after sale service.







Our Services





1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.



The Exhibition





Our Customer





Certificate







FAQ



Question1: What is about the payment?

Answer:Payment:30% T/T as advance, 70% T/T before delivery.

Question2: what is about the delivery time?

Answer:That depend on the stocks.
