wire decoiling machine

FOB Reference Price:Get Latest Price
US $1,000-100,000 / Sets | 1 Set/Sets decoiling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Type:
Feeder Machine
Use:
Sheet
Place of Origin:
China (Mainland)
Brand Name:
Besco
Model Number:
NC
Voltage:
380v
Power(W):
as model
Dimension(L*W*H):
as model
Weight:
as model
Certification:
CE
Warranty:
all life,one year for free, all life,1 years free
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
The color can be customized
Automatic:
automatic
Origin:
China(mainland)
Material processing:
aluminum,carbon steel,stainless steel
CNC or Not:
Normal
Supply Ability
Supply Ability:
100 Set/Sets per Month decoiling machine
Packaging & Delivery
Packaging Details
wooden boxes or pallet.
Port
Shanghai
Lead Time :
Recording the stock



Product Description

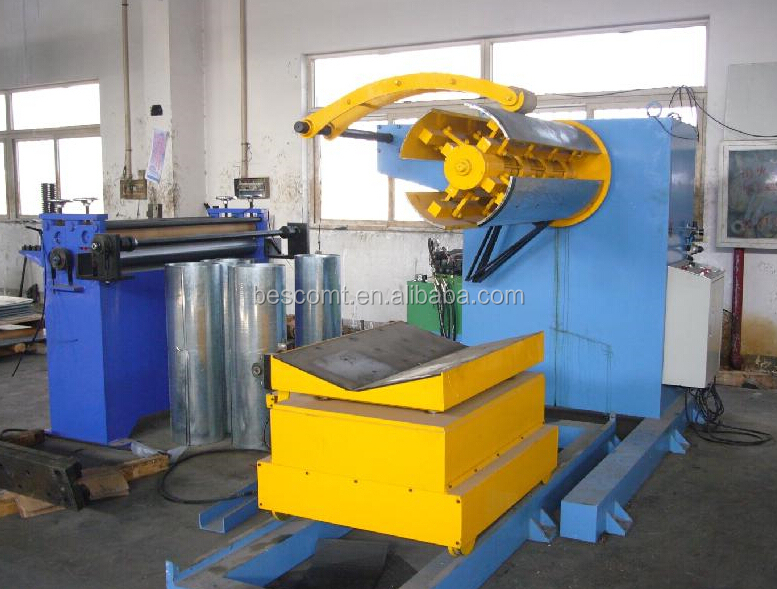

wire decoiling machine

1. It's suitable for all kinds of coiling uncoiling or recoiling  material , no matter thin or thick, metal or nonmetal sheets. On the basis of  Eupopean standard, full set of components with CE such as SCHNEIDER low electric voltage components, NSK bearings etc.

2. Four wheels are installed on the base of the decoiler, and the wheels equip brake device, so the machine can be moved easily. Adding motor to match with feeding device is available.

3. The principal axis adopts powerful type. It makes the material roll smoothly and increase loading capability.

4. Its a necessary device for auto punching machine working. It can save manpower, reduce cost and increase efficiency.

 5.It adopts JAPAN magnetic contactor and electronic components, less trouble and long lifetime.

1.jpg3.jpg4.jpg8



Techanical parameters ( can be customerized)

specwidththicknessI. DIAO.DIACoilLine speedmotorCoil Expansionmachine weightmachine L*W*H
(mm)(mm)(mm)(mm)weight
MT-2002002450-53012003000KGS15M/MIN1/2HPHydraulic1000KGS1.0*0.8*1.1
MT-3003002450-53012003000KGS15M/MIN1HPHydraulic1200KGS1.1*1.0*1.2
MT-4004002450-53012003000KGS15M/MIN1HPHydraulic1400KGS1.2*1.1*1.3
MT-5005002450-53012005000KGS15M/MIN2HPHydraulic1600KGS1.4*1.2*1.3
MT-6006002450-53012005000KGS15M/MIN2HPHydraulic1800KGS1.5*1.2*1.3
MT-7007002450-530120010000KGS15M/MIN3HPHydraulic1900KGS1.7*1.3*1.4
MT-8008002450-530120010000KGS15M/MIN3HPHydraulic2100KGS1.8*1.4*1.4
MT-100010002450-530120015000KGS15M/MIN5HPHydraulic2300KGS2.0*1.5*1.6
MT-130013002450-530120015000KGS15M/MIN7.5HPHydraulic2500KGS2.5*1.8*1.8
MT-160016002450-530120020000KGS15M/MIN10HPHydraulic3000KGS3.0*2.0*2.0



Our Services

1.Free installation, trial start and adjustment, training. But the machine quotation does not include the cha  rges of our engineers in the buyer's country if you want, and the buyer must take charge of all the expen  diture including airplane tickets of our engineers when in the buyer's country to do the service!

2.Warranty period is1 years. During the warranty period we shall reply to the call or Fax from the user for the

machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by for  ce injury) within 24 hours.

Packaging & Shipping

 The Packaging: The wooden boxes or pallet

besco Fine blanking hydraulic press.jpg

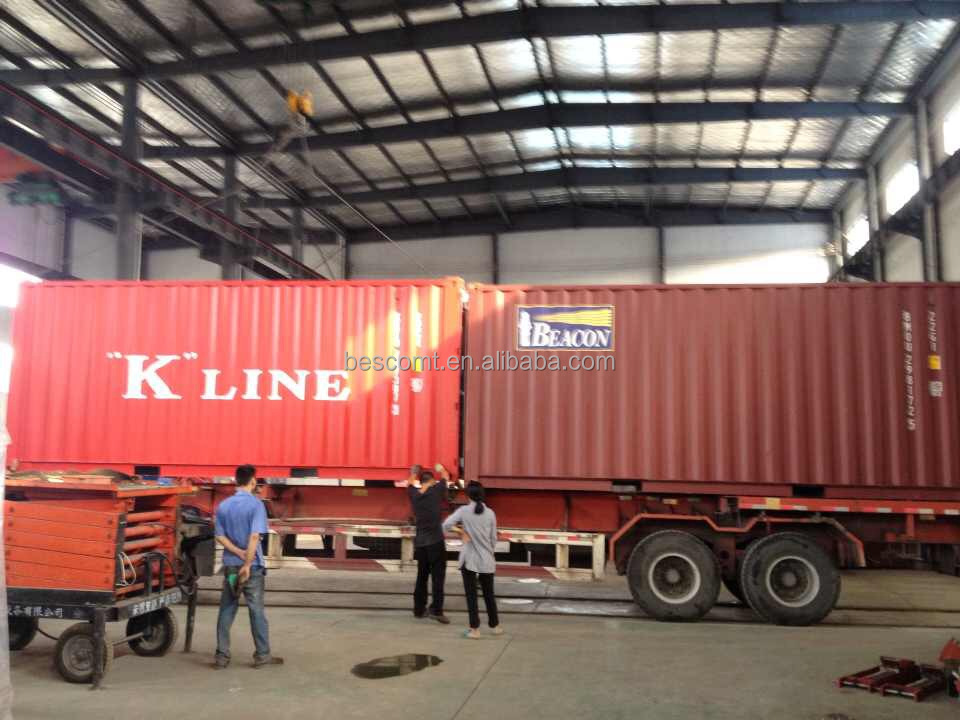

 The Shipping:

IMG_1168
