carbon steel plate straightening machine, plate leveling machine

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets plate straightening machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BESCO
Model Number:
plate straightening machine
After-sales Service Provided:
Engineers available to service machinery overseas
THK (mm):
0.1-1.0
Width (mm):
100-360
weight (T):
≤2.5
Width accuracy (mm):
≤±0.05
Slits (pc):
≤12
Slit tolerance (mm):
≥6
Speed (m/min):
≤60
Capacity (KW):
≤45
Flood space (m):
8*3
Supply Ability
Supply Ability:
1000 Set/Sets per Month plate straightening machine
Packaging & Delivery
Packaging Details
sea worthy wooden box
Port
qingdao steel sheet slitting line
Lead Time :
Shipped in 30 days after payment
Product Description



stainless steel plate straightening machine, plate leveling machine

Main advantage:
1.The plate can be fed into the machine from both directions and can be leveled repeatedly.
2.Each of the top cross beams are lifted independently, each top working roller is installed on the independent crossbeam, so that each roller position can be adjusted individually
3. The international System of Units (SI) Standards are adopted for the elements .
4. The working roller positions are displayed with precision ±0.1mm on the computer screen.
5. The protection methods such as the overload, the over current, over voltage, the phase loss, the short circuit and others are equipped for the machine.
6. Processing technology of roller:
    Forging-tough turning- thermal refining -grinding-surface hardening-rough grinding - tempering -finish   grinding
7.The lubricaiotn method is electric centralized lubrication / bath lubrication
8.Adopt the double-motor driving & self-aligning roller bearings, so the transmission resistance is small and the required capacity of the main motor is small .


Specification  |  Name

3×1000

3×1600

6×2000

10×2000

12×1200

12×2000

12×2500

16×2000

16×2500

16×3200

Max. leveling thickness(mm)

3

3

6

10

12

12

12

16

16

16

Max. leveling width(mm)

1000

1600

2000

2000

1200

2000

2500

2000

2500

3200

Min. leveling thickness(mm)

0.8

0.8

1.5

2.5

3

3

4

4

4

4

Plate yield limit(MPa)

280

240

360

360

360

360

360

360

360

360

Working roller distance(mm)

60

80

100

150

150

165

165

200

200

210

Working roller diameter(mm)

55

75

95

140

140

150

150

180

180

180

Working roller number

19

15

13

13

11

11

11

11

11

11

Leveling speed(m/min)

10

14.4

9

9

3-7

9

7

7

6

7

Main motor power(KW)

15

18.5

37

45

37

75

90

90

110

132

Overall dimension(L×W×H)(mm)

1.6 ×
4.55×
1.56

4.74×
1.53×
2.2


5.95×
1.48×
3

6.84×
2.78×
3.47

4.92×
2.18×
3.11

7.2×
2.6×
3.8

7.77×
2.6×
3.8


7.87×
2.33×
4.77

8.37×
2.33×
4.77


  9×
2.5×
4.8

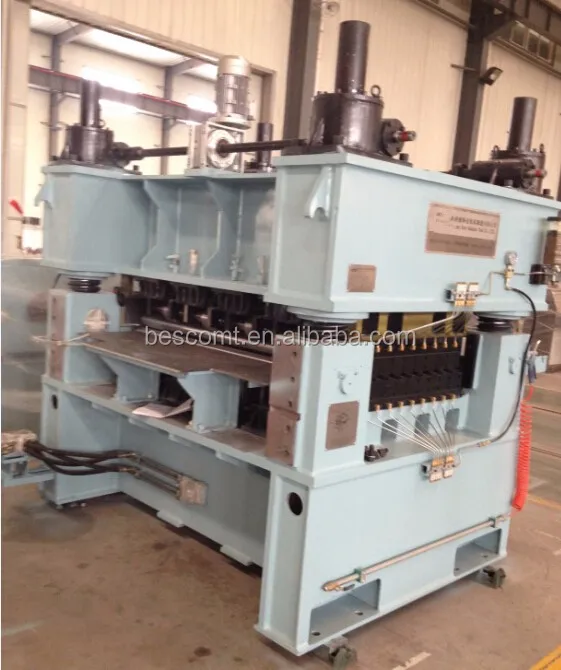

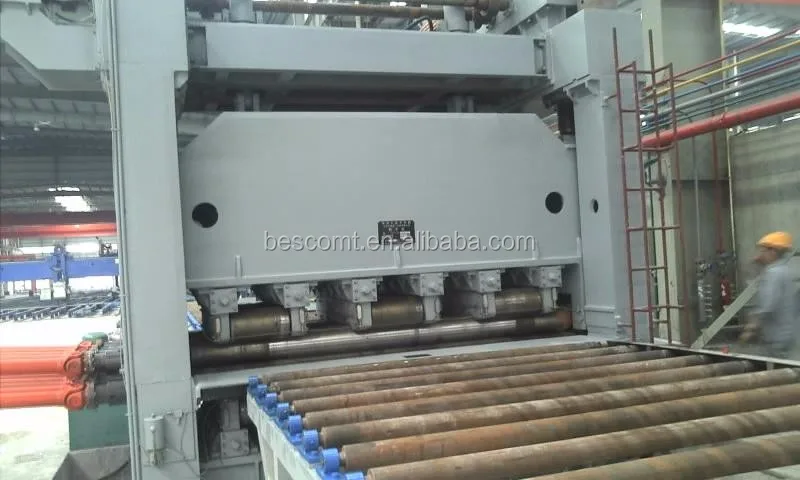

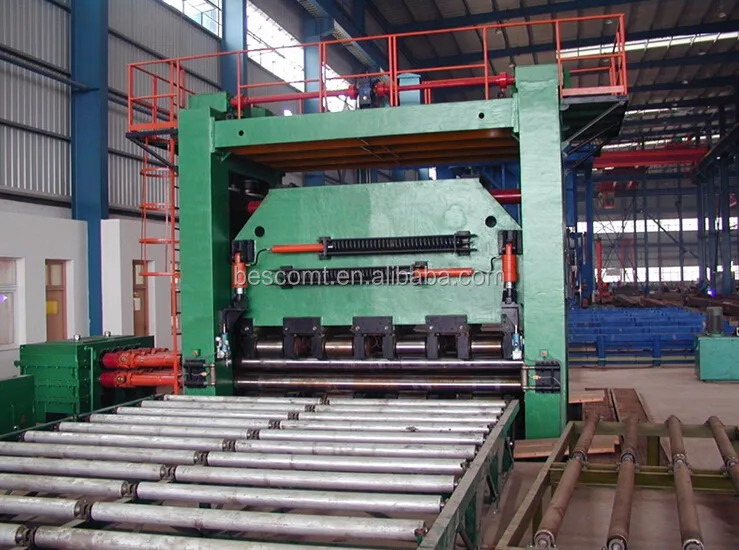

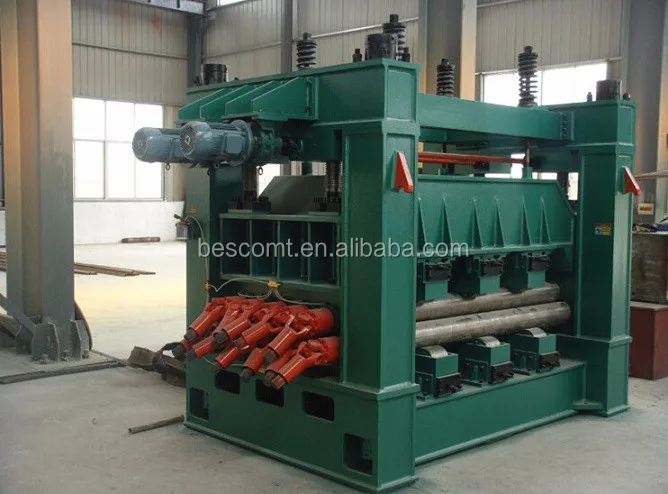

Product Pictures



.jpg




Packaging & Shipping





Company Information



Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines, cut to length and slitting line, etc.

We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.

We will offer you our best quality machine and the after sale service.








Our Services





1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
