Punching Machine robotic arm

FOB Reference Price:Get Latest Price
US $100-10,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
OEM
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Elevation Speed:
Adjustable
Vertical Travel(mm):
750mm
Horizonal Travel(mm):
950-1050
Application:
punching
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Besco
Weight:
Max : 1000kg
Dimension(L*W*H):
3000*1200*1500mm
Power(W):
AC220V 10V50/60HZ
Certification:
ISO
Warranty:
1 Year
Max load:
5 kg
Action radius:
120mm
Repositioning accuracy:
0.1mm
Mounting:
floor
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month robot arm for Punching Machine, CNC Arm Robot for stamping machi
Packaging & Delivery
Packaging Details
sea worthy wooden box
Port
Shanghai
Video Description
Product Description

 Technical Features:
1,Auto stamping forging robot
2,4-axis design, flexible operation.
3,AC servo motor drive, great stability and high
position repeat accuracy
4,Automation stamping base
5,Simplicity of operation.
Specifications :
 Model: FY-B-S4G10
 Number of axes:4
 Max working radius: R1800mm
 Payload: 10Kg
 Driving mode: AC servo
 Position repeat accuracy:±0.20mm
Paramenters of axes Z: 300mm
R: ±180°
A: 600mm
B: ±180°
 Work efficiency Max: 12c/min
 Power rating 3.5KW
 Ambient temperature: 0~60℃
 Installation parameters: Floor mounted
Adaptation range :
Single Machine forging feeding The robot flexible installation.
 Multiple Machine product transfer, different height of mold can be ompatibela nd easy for molds change.
 Suitable for many product share same stamping production line, quick programming and debugging.



 Max load 5kg
 Action radius 1200mm
 Repositioning accuracy ±0.1mm
 Mounting on floor
 Vertical stroke of J1 axis 400mm
 Main rotation angle of J2 axis 270°
 Extension dis. of J3 axis 500mm
 Rotation angle of J4 axis 360°
 Max up/down speed of J1 axis 1.6m/s
 Max rotation speed of J2 axis225°/s
 Max flexible speed of J3 axis 2.0m/s
 Max rotation speed of J4 axis 360°/s
 Weight of device 200kg
 Enviroment temperature 0 - 45 °C
 Humidity

 30% - 95%

 Color

 blue, others available

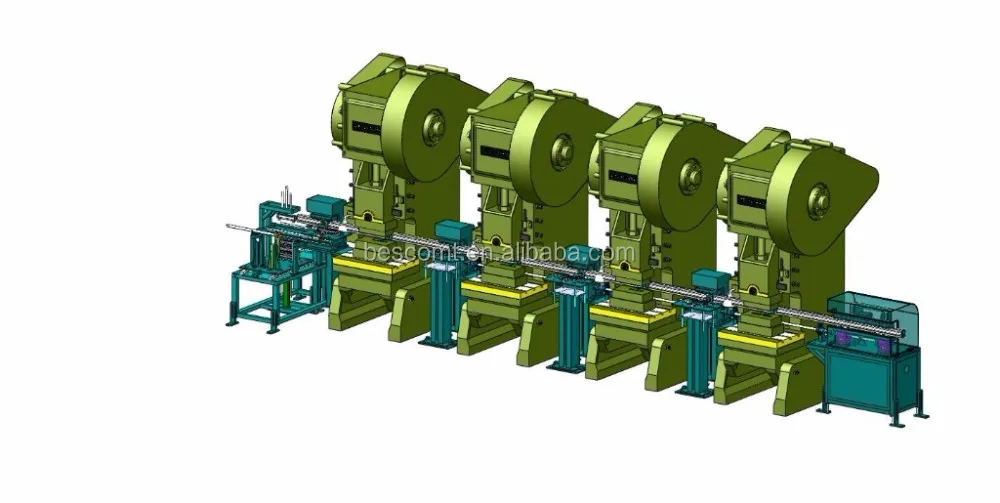

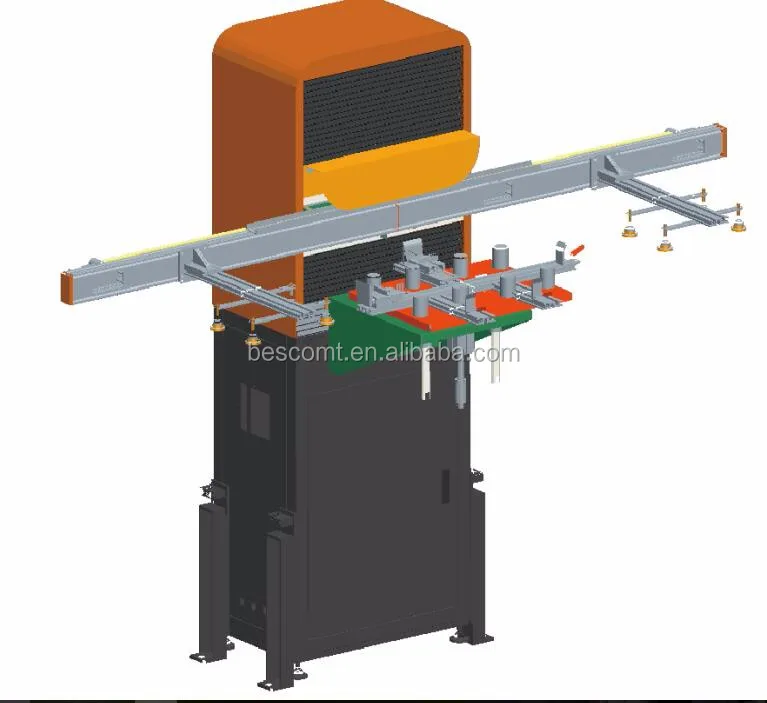

Product Pictures





Packaging & Shipping



Company Information



Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines, cut to length and slitting line, etc.

We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.

We will offer you our best quality machine and the after sale service.







Our Services





1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.



The Exhibition





Our Customer





Certificate







FAQ



Question1: What is about the payment?

Answer:Payment:30% T/T as advance, 70% T/T before delivery.

Question2: what is about the delivery time?

Answer:That depend on the stocks.
