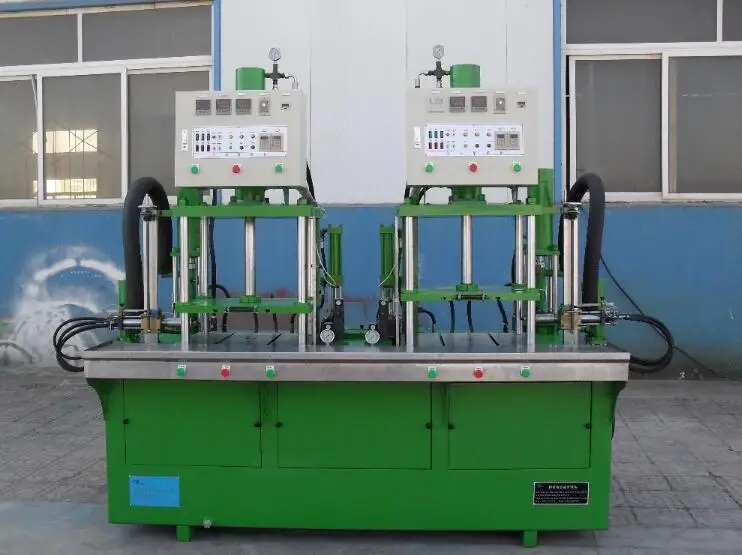

Model 10T vertical double-station non-cylinder wax injection machine.

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Besco
Model Number:
MMY10-2-16
Voltage:
380V /220V/440V
Power(W):
7.5KW
Dimension(L*W*H):
3000*1200*2200mm
Weight:
1750kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
casting parts
Name:
wax mold injection machine
Raw material:
wax
Color:
green
voltage:
220V/380/415V optional
Technology:
European
Type:
double staion
power:
hydraulic
Usage:
make wax mold for casting part
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywooden box
Port
qingdao
Lead Time :
30 days

Product Description



Suitable for high-quality, high-precision casting wax injection molding.


Features:
1. The hydraulic system adopts hydraulic linkage design, and the combination of two 7MPa hydraulic main pumps through the hydraulic linkage device can guarantee the mold clamping force alone, and at the same time meet the requirements of wax shooting, effectively increasing the wax injection speed. And reduce the installation power of the wax press, improve the working conditions of the hydraulic system, and improve the stability of the hydraulic system.
2. Worktables, press plates, and fuel tanks are all equipped with a water-cooled structure, which is used in conjunction with an ice water machine to control the temperature of the hydraulic oil within the operating temperature range, ensuring the long-term stability and reliability of the equipment.
3. Wax head stretching mode die wax, to avoid the shock vibration of the electrical system, the work is more stable, time-saving and high efficiency.
4. Stamping, wax shooting, mold retreat, and mold lifting time can all be adjusted on the corresponding time relay, which greatly improves the degree of automation of equipment operation and use.
5. The system temperature is set, adjusted and displayed in the closed-loop control system formed by the temperature controller, sensor and heater, which not only meets the requirements of different medium-temperature molding materials, but also prevents the invalid operation formed without reaching the operating temperature range.
6. Duplex stations operate independently and do not interfere with each other.

Parameter:

instructionsunitNMY10-2-10
Clamping force (Max)T10
Mould use space (depth x width x height)mm430*430*350
Up and down mode stroke.mm300
Up and down the minimum heightmm50
The moulding boardmm430*430
Side injection center minimum distancemm100
Telescopic strokemm150
Minimum distance from the base plate of the nozzlemm50
Adjust your stroke up and downmm200
Table heightmm900
Single maximum amount of waxmm2.3
Maximum injection pressureMPa0~10 (Variable pressure)
Wax injection times0~99.9
The holding times0~999
Wax box temperature control0~80
A temperature control
Temperature control system54~58±0.05
Wax tankL90
Installed powerKW13.5
Outside for ice water≤15

Product Pictures

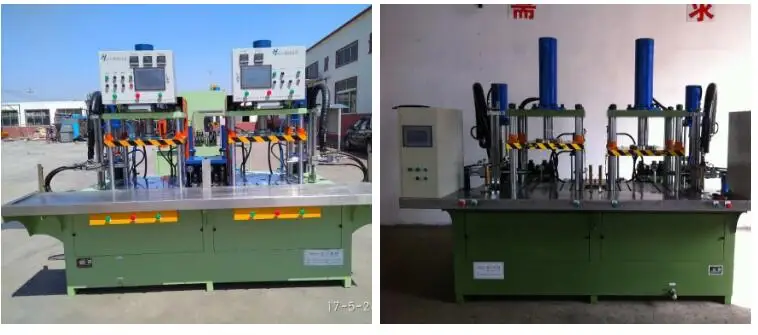

                 wax mold injection machine


            mold shell making and drying line


                                  De-wax machine


                                   Baking Oven


                  Shell Vibration Machine





Process of making investment metal parts


Packaging & Shipping

QQ201511241852491

Our Services

1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
