free change cylinder C type hydraulic wax injection machine of Investment Casting Machine

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Besco
Model Number:
MMYC-30
Voltage:
380V /220V/440V
Power(W):
7.5KW
Dimension(L*W*H):
3000*1200*2200mm
Weight:
1750kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
casting parts
Name:
wax mold injection machine
Raw material:
wax
Color:
green
voltage:
220V/380/415V optional
Technology:
European
Type:
C type
power:
hydraulic
Usage:
make wax mold for casting part
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywooden box
Port
qingdao
Lead Time :
30 days

Product Description

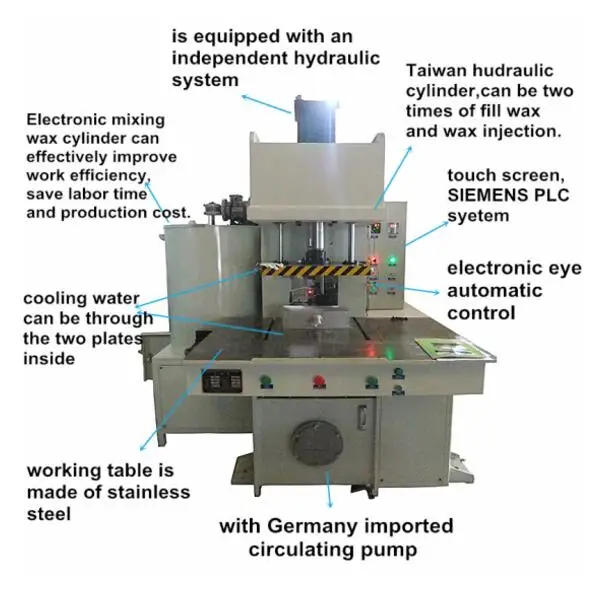

 Product characteristics:

1. The plate is sheathed 4-column structure, stable and convenient automatic mold mold assembly;

2. Pressure plate and the worktable are used four water cooling method, the fast cooling of wax;

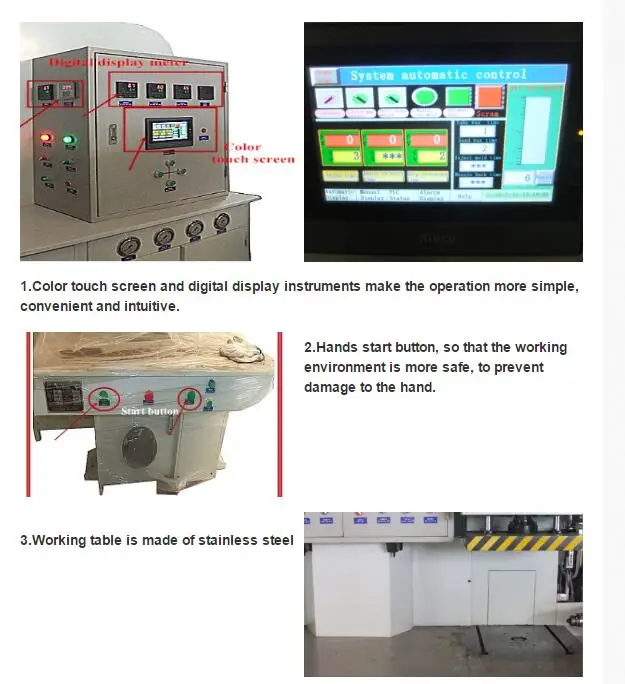

3.The use of touch screen man-machine interface control, to ensure that the operation is simple, stable process parameters;

4.The equipment has dual mode, L pressure + two times H pressure filling wax injection mode, H pressure +L wax injection mode, H pressure +L pressure + two times H wax injection mode, automatic top function, automatic core pulling function;

5.The big layer of the three tubes, wax cooler and wax cylinder to meet the production of large molds.

6.The use of low-voltage electrical equipment world brand Schneider; hydraulic system using the original Taiwan, cylinder seal with the Japanese NOK seal.



instructionsunitMMYC-50
Clamping force (Max)T50
Mould use space (depth x width x height)mm800*900*700
Up and down mode stroke.mm600
Up and down the minimum heightmm200
The moulding boardmm600*600
Side injection center minimum distance.mm150
Telescopic strokemm150
Minimum distance from the base plate of the nozzle.mm100
Adjust your stroke up and down.mm400
Table heightmm900
Single maximum amount of wax.L15
Maximum injection pressureMPa0~10 (Variable pressure)
Wax injection times0~99.9
The holding times0~999
Wax box temperature control0~80
Second section temperature control
Temperature control system54~58±0.05
Wax tankL120
Installed powerKW14.5
Outside for ice water≤15



Product Pictures

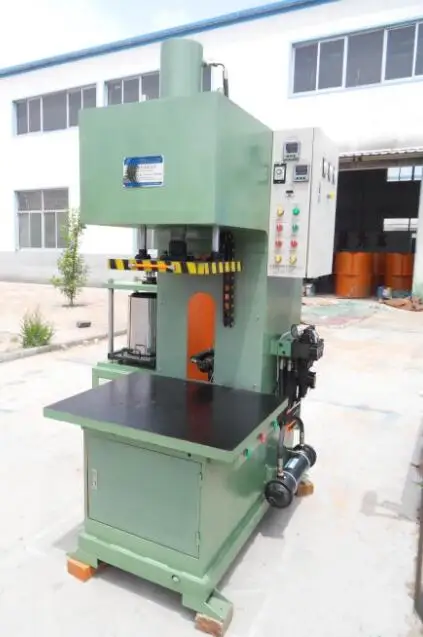

                 wax mold injection machine


            mold shell making and drying line


                                  De-wax machine


                                   Baking Oven


                  Shell Vibration Machine





Process of making investment metal parts
