double station hydraulic hydraulic die head machine investment casting equipment

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Besco
Model Number:
MMYT6.3-2-5
Voltage:
380V /220V/440V
Power(W):
7.5KW
Dimension(L*W*H):
3000*1200*2200mm
Weight:
1750kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
casting parts
Name:
wax mold injection machine
Raw material:
wax
Color:
green
voltage:
220V/380/415V optional
Technology:
European
Type:
double staion
power:
hydraulic
Usage:
make wax mold for casting part
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywooden box
Port
qingdao
Lead Time :
30 days

Product Description

 Product characteristics:

1. The plate is sheathed 4-column structure, stable and convenient automatic mold mold assembly;

2. Pressure plate and the worktable are used four water cooling method, the fast cooling of wax;

3.The use of touch screen man-machine interface control, to ensure that the operation is simple, stable process parameters;

4.The equipment has dual mode, L pressure + two times H pressure filling wax injection mode, H pressure +L wax injection mode, H pressure +L pressure + two times H wax injection mode, automatic top function, automatic core pulling function;

5.The big layer of the three tubes, wax cooler and wax cylinder to meet the production of large molds.

6.The use of low-voltage electrical equipment world brand Schneider; hydraulic system using the original Taiwan, cylinder seal with the Japanese NOK seal.



instructionsunitMMYT6.3-2-5
Clamping force (Max)T≥5
Mould use space (depth x width x height)mm380*330*438
The left and right mold travel.mm250
Minimum width of left and right mold.mm80
Up and down mode stroke.mm250
Up and down the minimum heightmm150
The maximum distance from the center.mm165
The minimum distance from the center.mm65
Shoot the lower limit of the mouth.mm±150
Front and back stroke.mm150
The stroke of the nozzle.mm100
Table heightmm900
Single maximum amount of wax.L3
Maximum injection pressureMPa≤5 (Variable pressure)
Wax injection times0~999
The holding times0~999
Keep temperature control temperature0~80±1
Wax tankL138
Installed powerKW/V12/380
Equipment dimensionsmm2000*1060*1560
Weight of equipmentT2.1



Product Pictures

.jpg

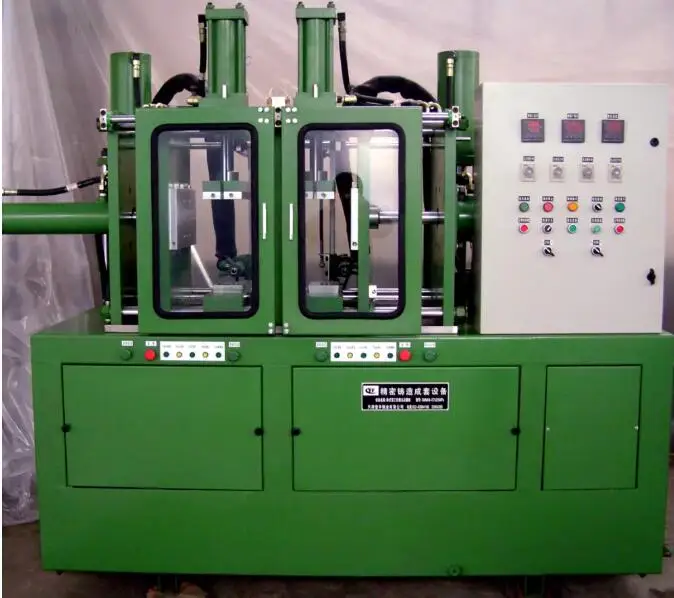

                 wax mold injection machine


            mold shell making and drying line


                                  De-wax machine


                                   Baking Oven


                  Shell Vibration Machine





Process of making investment metal parts


Packaging & Shipping

QQ201511241852491

Our Services

1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
