CNC Fiber Laser Metal Cutting Machine For Round And Square Pipe

  • 1 - 9 Sets
    US $100000.00
  • >=10 Sets
    US $50000.00
Model Number:
Besco-6020
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
6000*200mm
Cutting Speed:
70m/min
Graphic Format Supported:
AI, PLT, DXF, DWG, DXP
Condition:
New
Cutting Thickness:
20mm
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
PA 8000
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Besco
Certification:
CE
Product name:
laser cutting machine
Laser power:
500w
Function:
pipe cutting
Model:
6020
Type:
white and blue
Control system:
siemens
Working area:
12000mm*3000mm*2000mm
Laser source:
Germany IPG Fiber Laser
Warranty:
one year
Cutting materials:
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
40'HQ Container for CNC Fiber Laser Metal Cutting Machine For Round And Square Pipe
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(day) 40 To be negotiated
Video Description
Product Description
Product Application

CNC Fiber Laser Metal Pipe Cutting Machine/Pipe Beveling Cutting Machine Besco-6020 is equipped with intersecting curve cutting and arbitrary angle bevel cutting function; it is mainly used for cutting pipe, tube and oval tube with high-efficiency and high-precision.It has wide application in kinds of industry like: fitness equipment, tube industry, medical equipment, etc.


Technical Parameter FOR Besco-6020

NO.
ITEM
PARAMETER
1

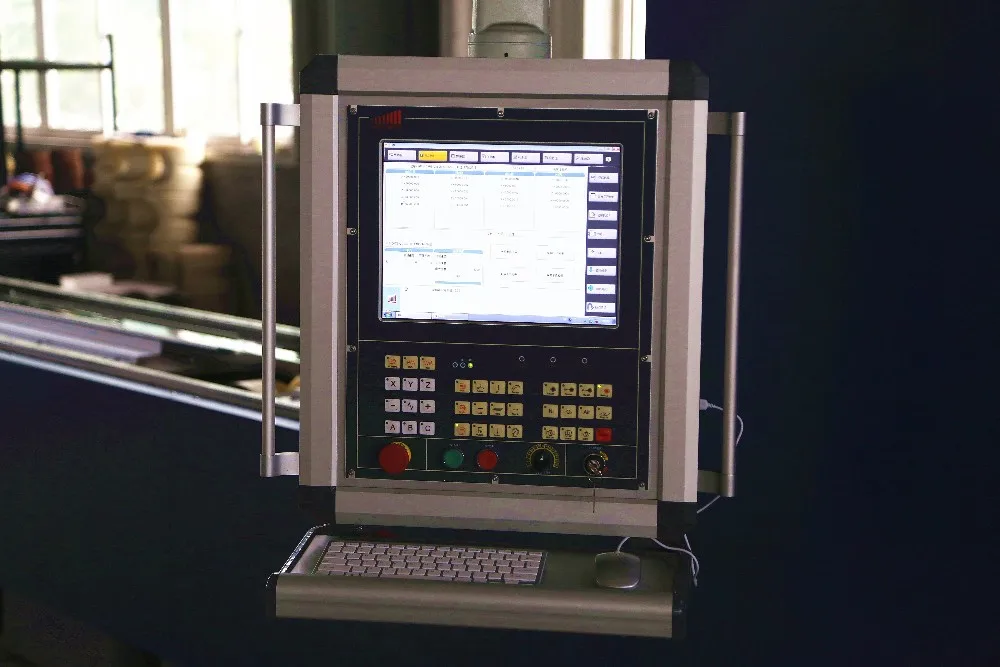

CONTROL
GERMANY PA8000
2
LASER RESONATOR
RAYCUS 1000W
3
LASER HEAD
Raytools
4
WATER CHILLER
HANLI

5

SERVO MOTOR
YASKAWA
X-4.4KW,Y-1.0KW,
Z-0.4KW,W1-5KW,
W2-3KW




6

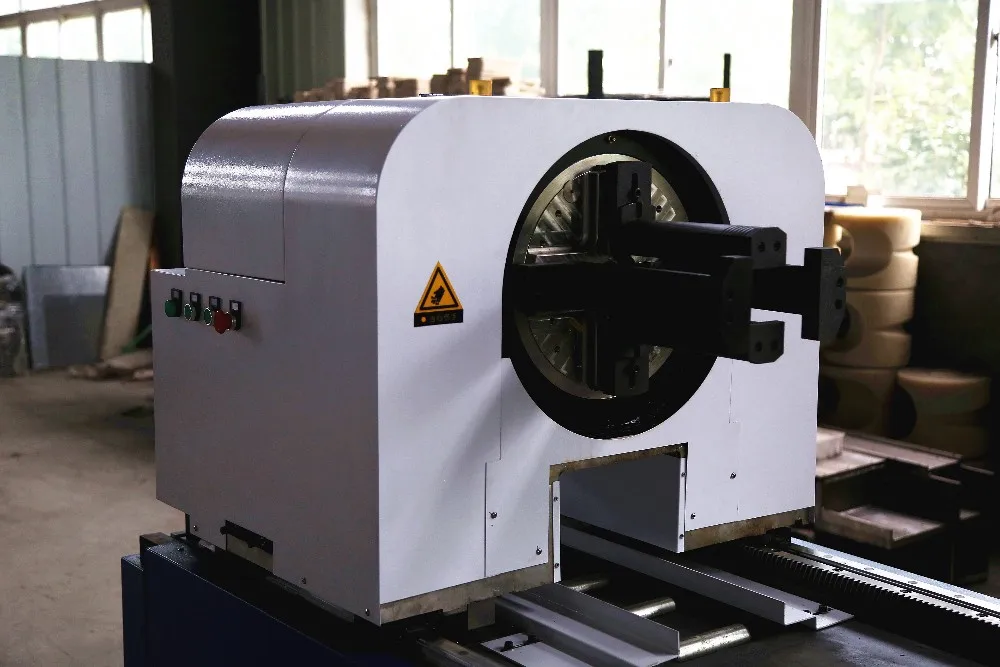

 CHUCK
TYPE
BOTH AUTOMATIC PNEUMATIC CHUCK
DIAMETER(mm)
φ20-φ200
MIN. WASTE LENGTH(mm)
200
RATED RESOLUTION(r/min)
60
MAX. RESOLUTION(r/min)
120
WEIGHT BEARABLE(TOGETHER)
500Kg
7
X
TRAVEL
6800mm
TRAVELLING RATED SPEED (m/min)
57
TRAVELLING MAX. SPEED (m/min)
114
8
Y
TRAVEL (mm)
500
TRAVELLING RATED SPEED (m/min)
57
TRAVELLING MAX. SPEED (m/min)
114
9
Z
TRAVEL (mm)
180
TRAVELLING RATED SPEED (m/min)
30
TRAVELLING MAX. SPEED (m/min)
60
10
RAIL(TAIWAN BRAND)
35,25

11

TRANSMISSION
X: 3 MOL 6 LEVEL OF GRINDING
Y:3 MOL 6 LEVEL OF GRINDING
Z:BALL SCREW
12
REDUCER
MOTOVARIO
13
POSITIONNING ACCURACY
±0.03/1000 mm
14
REPEAT POSITIONING ACCURACY
±0.02
15
ELECTRICAL PART
SCHNEIDER,OMRON
16
PNEUMATICAL PART
SMC,AirTAC
17
NESTING SOFTWARE
ALMACAM
18
EXTRACTION SYSTEM
Acme
19
SUPPORT
REDUCING WHEEL
20
LOADING
BACK OR SIDE
21
DUST EXTRACTION
OPTION

22

BED
16-20mm WELDED STEEL PANEL, HEAT TREATMENT, CNC MILLING, WEIGHT 12t

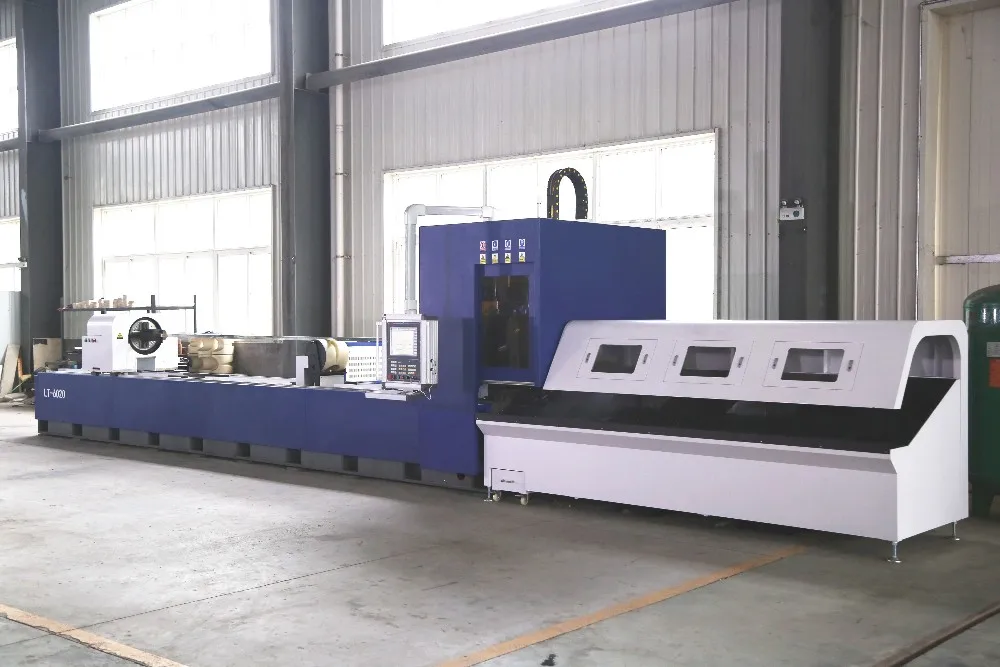

Products Show

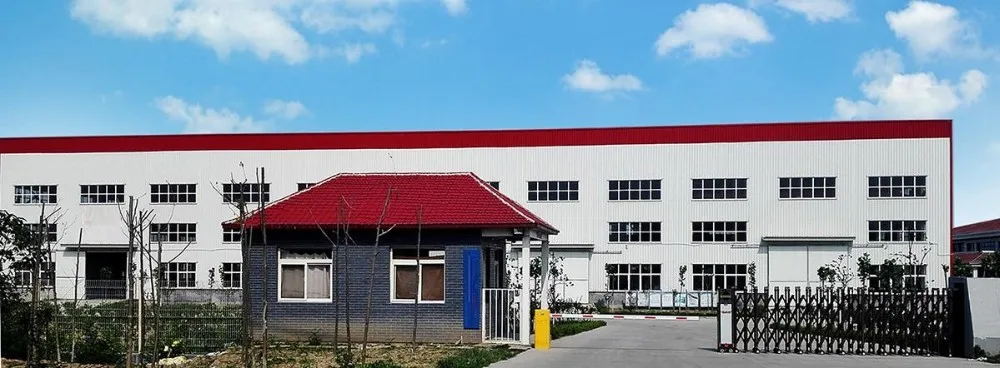

Our Company
Our Service

We have 3 years experience on researching and manufacturing laser pipe cutting machine and we export our products to all the worldwide market and have the best response from customers.
We can produce the laser pipe cutting machine with different power  to meet the customer's different demands.Here you can find what you want.
We will offer you our best quality product and the after sale service.
We sincerely welcome friends from the industry to visit our factory.

Packing & Delivery

Packing: 40 foot container or depending on sizes of Automatic Tube Cutting Machine for Stainless

Delevery Time: within 60 days after deposit

Waranty Periord: 2 Years
